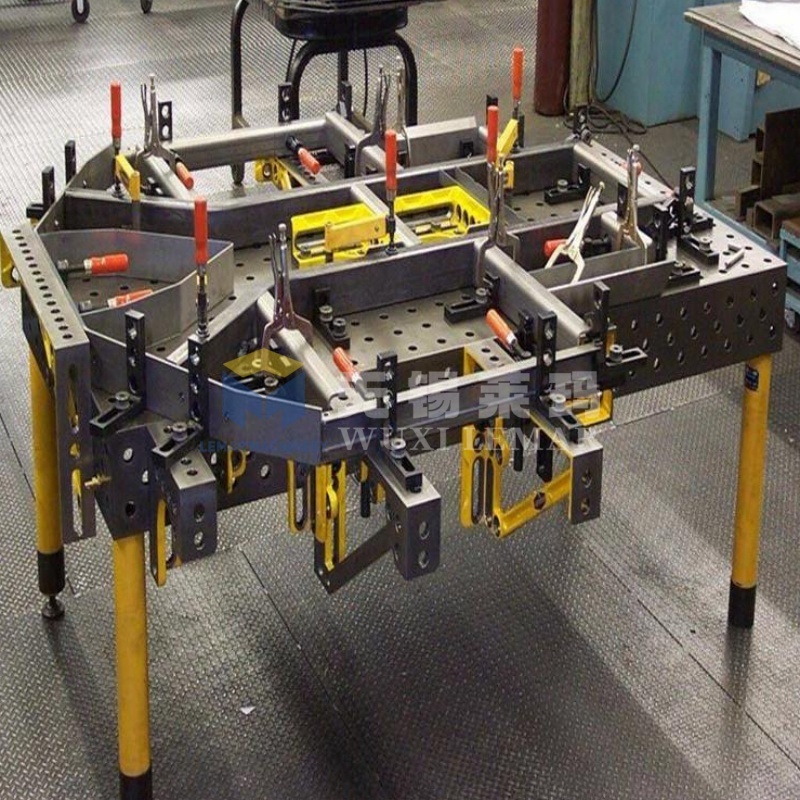

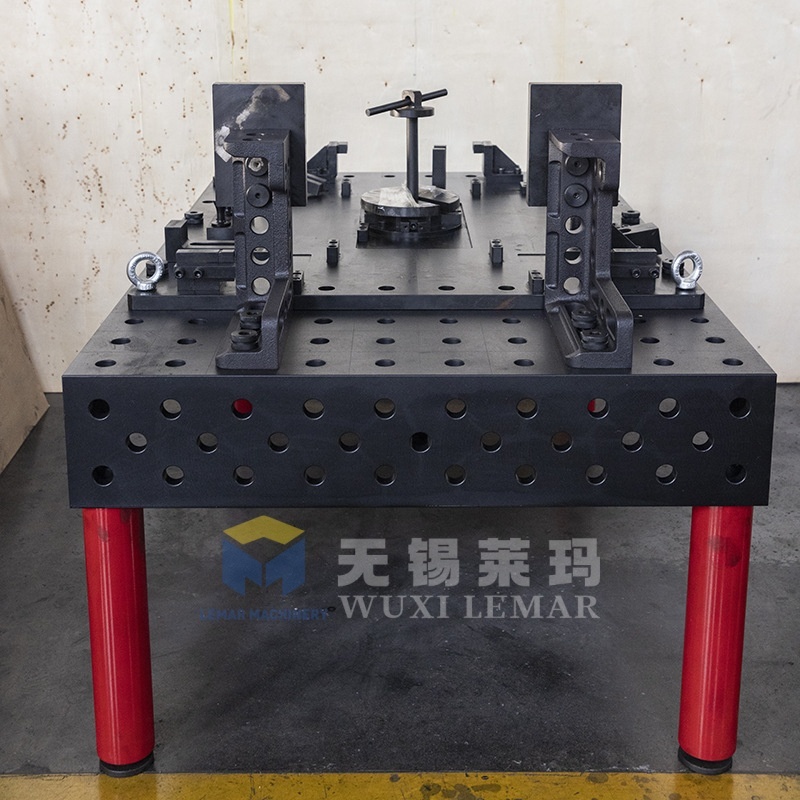

Heavy Duty D28 Versatile Modular Precision Industrial Steel Fabrication Welding Table
Premium Welding Solution for Industrial Workshops
The Heavy Duty D28 Versatile Modular Precision Industrial Steel Fabrication Welding Table is the ultimate workhorse for modern metal fabrication shops. Designed to handle everything from light assembly to heavy structural welding, this table adapts to your project — not the other way around.
Built with industrial-grade steel and featuring the industry-standard D28 modular fixturing system, this table delivers precision, flexibility, and rock-solid stability for every fabrication challenge. One table. Endless possibilities.
The industry-standard D28 modular fixturing system cuts setup time by 70%, letting you reconfigure jigs and clamps in minutes instead of hours. With ±0.05mm flatness accuracy and optional nitrided surface treatment (62 HRC), every weld is consistent, every setup is repeatable, and your table stays looking new for years.
Product Advantages
-
Industrial-Grade Heavy Duty Build
• Q355 structural steel construction for maximum durability
• 5,000 kg load capacity — handles the heaviest fabrication jobs
• Reinforced box-section frame eliminates flex and vibration
• Built to withstand daily industrial use for 10+ years
-
Truly Versatile — One Table, Every Job
• Perfect for MIG, TIG, Stick, and flux-cored welding
• Ideal for sheet metal fabrication, pipe welding, and structural steel work
• Doubles as an assembly table, layout table, or inspection surface
• Works with rotary positioners, cutting torches, and machining fixtures
• Adaptable for prototype work or high-volume production runs
-
Modular D28 Fixturing System
• 28mm precision-drilled holes on 100mm grid pattern
• Fully compatible with all major D28 fixture brands
• Set up complex jigs in minutes, not hours
• Hundreds of clamping and stop combinations available
• Reconfigure instantly for different projects — no drilling, no welding
-
Precision You Can Measure
• ± 0.05mm flatness per square meter
• CNC-machined hole positions with ± 0.1mm accuracy
• Ground surface ensures consistent part alignment
• Repeatable setups mean consistent quality, batch after batch
• Reduces scrap and rework — pays for itself fast
-
Premium Surface Options
• Nitrided finish (recommended): 62 HRC surface hardness, anti-spatter, wear-resistant
• Black oxide finish: Budget-friendly, corrosion-resistant
• Galvanized finish: Maximum rust protection for humid environments

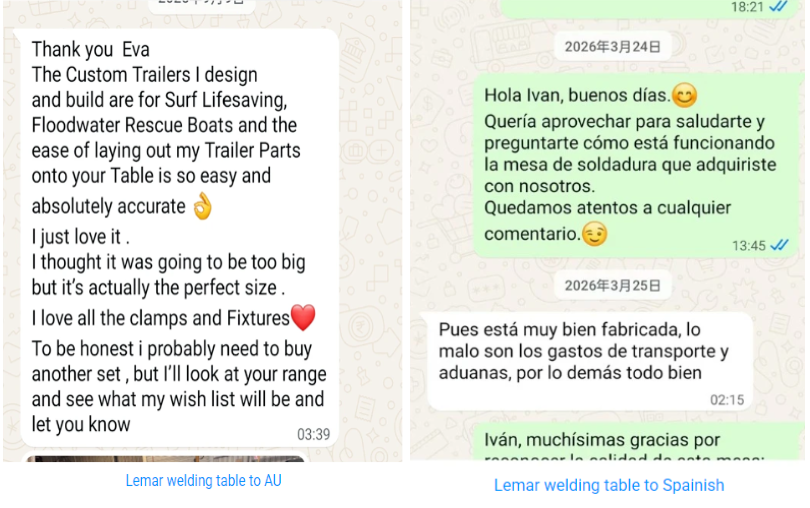

Customer Reviews And Core Values
5 Ways This Table Transforms Your Fabrication Shop
-
Cut Setup Time by 70%
Stop wasting hours building custom jigs. The D28 modular system lets you clamp, stop, and position parts in minutes. What used to take a full afternoon now takes 15 minutes.
-
Improve Weld Quality & Consistency
A flat, stable table means parts fit right and welds are consistent. No more shimming, no more guesswork — just repeatable, professional results every time.
-
Maximize Floor Space
One versatile table replaces multiple workstations. Welding, assembly, layout, inspection — all on one surface. Free up valuable shop floor space for more revenue-generating equipment.
-
Reduce Fatigue & Improve Safety
Ergonomic working height and stable clamping mean less strain on your team. Parts stay put, reducing the risk of shifting or falling during welding.
-
Future-Proof Your Investment
As your business grows and projects change, your table grows with you. Add accessories, expand the tabletop, or reconfigure — no need to buy a whole new setup.
Application Scenarios
- General Metal Fabrication
- Sheet Metal Work and Enclosures
- Structural Steel Welding
- Pipe and Tube Fabrication
- Jig and Fixture Building
- Prototype Development
- Automotive and Off-Road Fabrication
- Agricultural Equipment Repair
- Industrial Maintenance Shops
- Vocational Training Facilities
Technical Specifications
| Item |
Standard Parameter |
| Base Material |
Q355 low-alloy high-strength steel |
| Surface Treatment |
Five-sided full-depth integral nitriding |
| Surface Hardness |
HV 450-1000 |
| Hole Specification |
D28 (28mm diameter), grid spacing 100±0.05mm |
| Flatness Accuracy |
≤0.1mm / 1000mm |
| Hole Center Tolerance |
±0.03mm |
| Tabletop Thickness |
25mm |
| Max Static Load |
12 tons |
| Working Surfaces |
Five-sided operation (top plus four vertical sides) |
| Custom Service |
Multiple standard sizes |
Export Packaging
Tabletop: The main welding table body is packed in a heavy-duty, fumigation-free solid wood plywood crate, featuring internal foam protection and reinforced corner bracing to prevent damage during ocean transit.
Fixture Kit: Components are individually wrapped in anti-rust paper and organized within a metal tool case.
Legs and Accessories: Packed in separate boxes to prevent scratching the nitrided tabletop surface during transport.
Frequently Asked Questions
Q1: What does "D28" mean?
A: D28 refers to the 28mm diameter hole system, the European industry standard for welding fixture tables. It ensures compatibility with hundreds of off-the-shelf clamping accessories.
Q2: Can this table handle heavy structural steel?
A: Absolutely. With up to 20mm thick plate and 5,000 kg load capacity, this table handles structural steel, heavy pipe, and large fabrication assemblies with ease.
Q3: How do I choose the right size?
A: Consider your typical project size plus 20-30% workspace around the parts. Most shops start with 2000×1000mm or 2000×1500mm. Not sure? Contact us and we'll help you size it right.
Q4: What's the warranty?
A: We offer a 2-year warranty on manufacturing defects. With proper care, these tables last 10+ years in daily industrial use.
Ready to Upgrade Your Fabrication Shop?
Don't let an inadequate work surface hold back your production quality and efficiency. Invest in a table that works as hard as you do.
