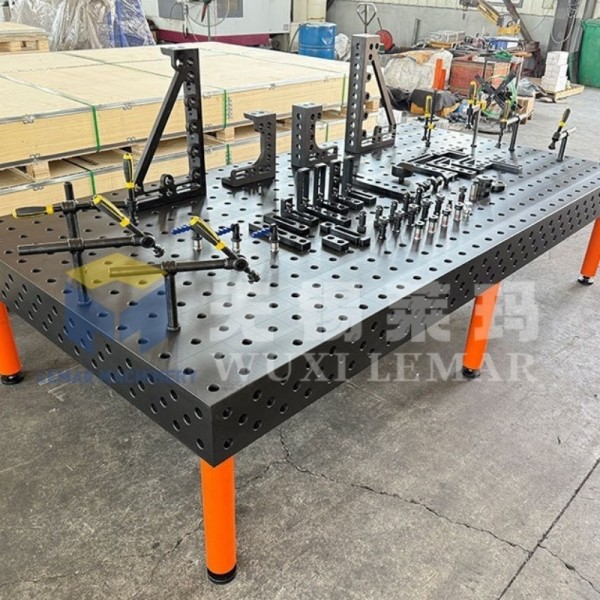

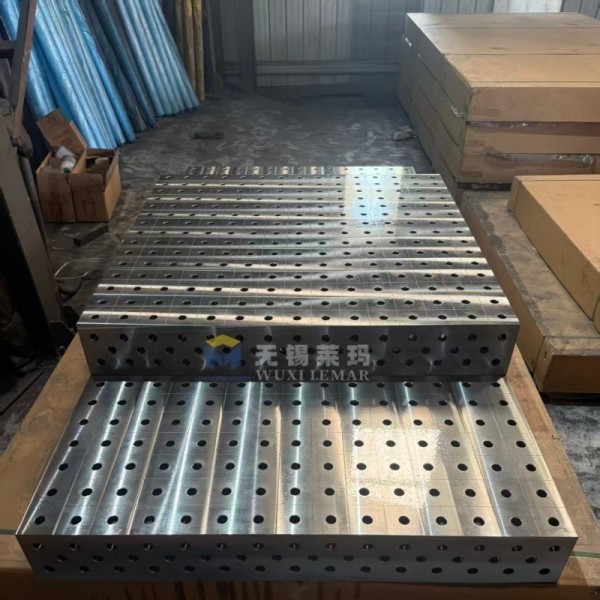

D28 Modular Welding Table For Construction Steel Beam Processing Factory is a professional industrial 3D flexible welding solution tailor-made for steel beam manufacturing, structural steel fabrication, and heavy steel structure processing plants. Built with industry-standard Φ28mm modular hole systems and full five-sided precision perforated design, this heavy-duty welding table delivers ultra-stable clamping, high-precision assembly, and low-deformation welding performance for all types of construction steel beams, H-beams, steel columns, and truss components. Replace inefficient custom single-purpose welding jigs with our reusable, spliceable, and robot-compatible D28 modular platform to boost production efficiency, reduce tooling costs, and ensure consistent workpiece accuracy for mass and custom steel structure orders.
Four major categories of standard accessories, all interchangeable and can be purchased in batches for expansion:
- Heavy duty clamping type: 5-ton flip quick clamp, vertical clamping clamp, side tensioning device, pneumatic hydraulic clamp
- Positioning benchmark class: 90°/45° 3D angle ruler, V-shaped block (supported by circular steel beams), equal height cushion block, telescopic support column
- Splicing connection type: quick locking pin, splicing positioning pin, extended positioning plate
- Auxiliary accessories: tool cart, grounding device, lifting ring, nylon hole cleaning brush, rust prevention and maintenance oil set
Is this D28 welding table compatible with welding robots?
Fully robot-compatible. The unified standard hole grid provides fixed repeatable positioning. It matches six-axis welding robots and positioners perfectly, supporting one-time teaching and batch high-precision automatic welding.
What is the load capacity and flatness accuracy?
Load capacity: 2-15 tons/㎡ (varies by thickness and material). Standard flatness: ≤0.1mm/1000mm; precision grade: ≤0.05mm/1000mm. All tables are stress-relieved to prevent permanent deformation under long heavy loads.
Do I need to make custom welding jigs after buying this table?
No custom jigs needed. All D28 modular accessories are universal and reusable. You can rebuild tooling layouts in 10-30 minutes for different steel beam models, cutting jig costs and shortening production changeover time.
Do you support customized sizes and OEM services?
Yes, we support full size customization, thickened plates, reinforced structures and robot reserved positions. OEM service and custom accessory packages are also available to match different production lines.
What after-sales support do you provide?
We offer professional installation guidance, operation manuals and video tutorials. Lifelong technical support and factory-cost wearing parts supply are provided to guarantee stable production.
