D28 3D Welding Table with 100x100mm Hole Grid for Large Workpieces

Supply Ability : 500 units/month

Standard Table Thickness : 25mm

Model Number : D28

Hole Grid Pitch : 100 mm × 100 mm (center‑to‑center)

MOQ : 1 PCS

Delivery Time : 15-25 work days

Flatness : ≤0.1 mm / 1000 mm

Static Load Capacity : 5‑10 Tons per square meter

Payment Terms : L/C,D/A,D/P,T/T

Available Material : Q355 High‑Strength Steel / HT300 Cast Iron

Price : 500-1500 USD

Side‑to‑Top Perpendicularity : ≤0.1 mm / 1000 mm

Certification : CE

Hole Position Tolerance : ±0.05 mm

Brand Name : WUXI LEMAR

Bore Diameter : Φ28.065‑28.149 mm

Place of Origin : WUXI , CHINA

Working Faces : 5‑sided fully machined (Top + 4 Side Faces)

Packaging Details : 4000*2000*200

Contact Now

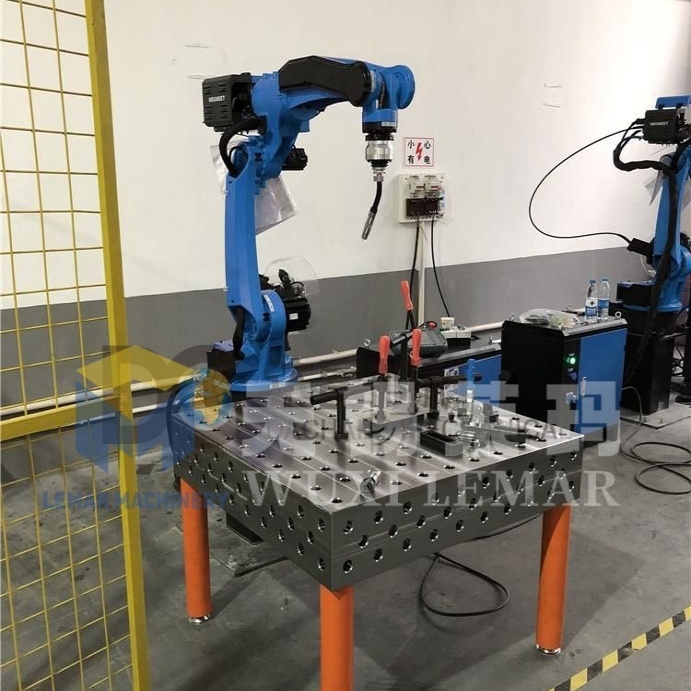

D28 3D Welding Table with 100x100mm Hole Grid for Large Workpieces
D28 3D Welding Table with 100x100mm Hole Grid for Large Workpieces

The D28 3D Welding Table with 100×100mm Hole Grid for Large Workpieces is a heavy-load modular welding fixture designed for large-scale workpieces. The precision-machined 100×100 mm hole grid and Φ28 mm D28 hole system provide high-force clamping points across five working faces. The stress-relieved structure prevents long-term deformation, while ion nitriding enhances surface durability against welding splashes. It supports table-to-table connection for extra-large assemblies and works seamlessly with all D28 standard accessories for heavy-industry welding applications.

D28 3D Welding Table with 100x100mm Hole Grid for Large Workpieces D28 3D Welding Table with 100x100mm Hole Grid for Large Workpieces
Model Selection and Comparison
Comparison Dimension D28 Series Welding Table D16 Series Welding Table
Bore Diameter Φ28mm Φ16mm
Hole Grid Pitch 100mm 50mm
Positioning Accuracy For Medium-Large Workpieces For Precision Small-Size Parts
Fixture Clamping Strength High (Heavy-Duty Clamping) Medium (Light-Duty Clamping)
Typical Workpieces Construction Machinery, Steel Structures, Pressure Vessels Sheet Metal, Enclosures, Small Pipe Fittings
Table Load-Bearing Capacity 5-10 Tons 2-5 Tons
Body Structure and Construction
  • Tabletop Thickness: Standard 25 mm; heavy-duty custom versions up to 30 mm. Holes feature countersunk chamfers to protect the edges and prevent chipping caused by fixture impacts.
  • Underside Reinforcement Ribs: Steel plate models (Q355) feature fully welded rib structures; cast iron models (HT300) feature integrally cast reinforcement ribs. Evenly distributed ribs withstand heavy loads and thermal stress from welding, minimizing tabletop deflection and deformation.
  • Aging Treatment: Artificial aging (annealing) is performed to eliminate internal stresses from machining and welding. Inferior manufacturers skip this step, leading to tabletop warping and loss of flatness within 6 to 12 months of use.
  • Five-Sided Milling: The top surface and four side faces undergo simultaneous CNC milling. This ensures side-to-top perpendicularity within 0.1 mm/1000 mm and establishes a unified datum for both side and top holes; side holes are functional mounting points for heavy-duty tooling, not merely decorative features.
  • Surface Roughness: Ra 1.6-3.2 μm, suitable for precision positioning; optional etched metric scales facilitate quick layout and datum alignment.
Customization Options
D28 3D Welding Table with 100x100mm Hole Grid for Large Workpieces D28 3D Welding Table with 100x100mm Hole Grid for Large Workpieces
  • Customizable dimensions: From 1000×800 mm up to 4000×2000 mm; non-standard lengths and widths available.
  • Customizable precision: Grade 0 (precision) or Grade 1 (industrial).
  • Customizable tabletop thickness: Standard 25 mm; 30 mm for heavy-duty applications.
  • Etched metric scale lines (along the tabletop edges) to facilitate on-site marking and reference alignment.
  • Pre-installed grounding terminal; lifting lugs (embedded at the four corners of the tabletop for easy forklift handling).
  • Support leg options: Standard adjustable legs / Heavy-duty frame stand / Hydraulic lifting stand (note: lifting models incur significantly higher costs and have reduced load-bearing capacity).
  • Customizable accessory packages: Basic, intermediate, and heavy-duty comprehensive sets.
FAQ
Does nitriding treatment prevent workpiece welding deformation?
No. Ion nitriding only protects the welding table itself against wear and spatter. Workpiece thermal shrinkage and deformation are determined by welding process, which cannot be eliminated by the table.
What causes flatness loss of the welding table?
Main reasons include missing stress-relief aging, heavy hammer impact, long-time concentrated welding heat, poor factory floor condition and overload.
What is your warranty policy?
The table body comes with 12-month warranty against manufacturing defects. Wear-and-tear parts such as locating pins and clamps are excluded from warranty. Man-made damage including grinding, heavy impact and overload is not covered.
What material options are available for the D28 welding table?
Two mainstream options: Q355 high-strength steel with ion nitriding and HT300 cast iron. Q355 steel performs better for heavy-impact heavy-duty workshops, while HT300 cast iron offers superior vibration-damping performance for robotic welding stations.
Is the nitrided surface conductive for welding earthing?
Yes. The nitrided layer is thin and conductive. We suggest using dedicated earthing terminals instead of relying on table legs for welding ground connection.

For manufacturing chassis, steel structures and other heavy components, our D28 3D Welding Table with 100x100mm Hole Grid for Large Workpieces minimizes custom jig costs and shortens your setup time.

Whether you need a single unit or multiple spliced tables, we can configure a complete solution for your manual or robotic welding station. Drop your inquiry with your specifications, and we will reply shortly.
