D16 16mm Hole 3D Flexible Welding Fixture Table for Precision Fabrication

Supply Ability : 500 units/month

Hole System : D16 standard hole system

Model Number : D16

Surface Hardness : HV500+

MOQ : 1 PCS

Delivery Time : 15-25 work days

Nitriding Layer Depth : 0.3–0.35 mm

Hole Center Distance Tolerance : ±0.05 mm

Payment Terms : D/A,L/C,D/P,T/T

Hole Diameter : 16 mm

Optional Material : HT300 high-grade cast iron/ Q355 low alloy steel

Price : 500-1500 USD

Grid Pitch : 50 × 50 mm

Working Surface : 5-sided fully machined (top + four vertical sides)

Brand Name : WUXI LEMAR

Flatness Tolerance : ≤0.1 mm / 1000 mm

Certification : CE

Place of Origin : WUXI , CHINA

Packaging Details : 4000*2000*200mm

Contact Now

D16 16mm Hole 3D Flexible Welding Fixture Table for Precision Fabrication
D16 16mm Hole 3D Flexible Welding Fixture Table for Precision Fabrication Upgrade your precision fabrication workshop with our D16 16mm Hole 3D Flexible Welding Fixture Table. Unlike single-sided ordinary welding tables, this 3D flexible fixture platform features fully machined top and four vertical sides with universal 16mm standard holes, allowing 360° multi-directional positioning and clamping of complex shaped workpieces. Optimized for delicate thin plate and miniature structural welding, its tight 50mm hole grid ensures ultra-fine adjustment while modular interchangeable accessories eliminate the high cost of custom dedicated jigs. Whether you run manual prototype workshops or automated robotic welding lines, this precision welding fixture table cuts production downtime, improves finished part consistency and reduces long-term equipment investment.

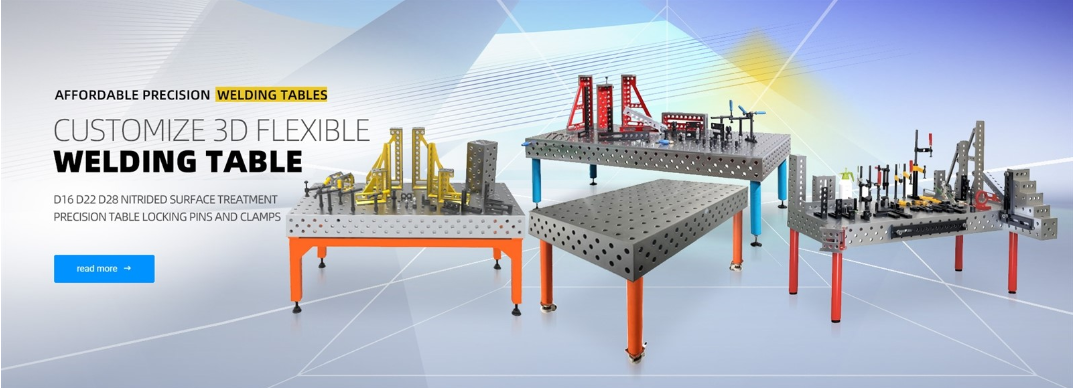

D16 16mm Hole 3D Flexible Welding Fixture Table for Precision Fabrication D16 16mm Hole 3D Flexible Welding Fixture Table for Precision Fabrication
Core Differentiation Between D16 and D28 Welding Tables
Parameter D16 16mm Precision Model D28 28mm Heavy-Duty Model
Hole Diameter 16mm 28mm
Grid Pitch 50mm 100mm
Main Application Scenarios Thin sheets, small parts, precision fabrication, robotic welding Thick plates, heavy frames, large steel structures
Positioning Density Dense hole points for high-precision fine adjustment Sparse hole layout with strong rigidity & load capacity
Unit Weight Lightweight, easy to transport Heavy structure, designed for fixed heavy-duty stations
Comprehensive Value
  • Cost: Reduce investment in specialized customized fixtures by 80% and lower fixture storage space
  • Efficiency: The comprehensive efficiency of welding and assembly has been improved by 30%-50%, and the changeover time has been reduced by 90%
  • Quality: High repeatability positioning accuracy, stable welding size error, product yield rate ≥ 98%
  • Land Occupation: One welding table replaces multiple sets of specialized fixtures, saving workshop space
  • Lifespan: Nitrided/cast iron material is wear-resistant and can be used normally for more than 10 years with stable accuracy
Use Safety Design Details
  • R3 rounded corners on all edges to avoid scratching operators and workpiece sheet metal during handling and operation
  • Bottom enclosed reinforced structure with no risk of sharp hollow cuts
  • Select protective barriers to prevent welding sparks from splashing onto the workshop floor and cables
  • Reserved grounding threaded holes on the countertop, which can be connected to the welding machine ground wire to eliminate welding static electricity
  • Mobile casters with dual brake locking structure, will not slide or shift during heavy-duty processing
  • The large-sized welding table comes standard with lifting rings, ensuring even force distribution during crane lifting and preventing deformation due to single point pulling
Complete After-Sales Guarantee System
  • Warranty Period: Steel nitriding welding table comes with a 2-year warranty for flatness and hole accuracy; Cast iron welding table comes with a 2-year warranty; Standard fixture accessories have a one-year warranty, except for human damage
  • Technical Support: Provide a complete set of 3D drawings, CAD 2D drawings, and tooling matching solutions; Free video tutorials on operation, leveling, and maintenance; Online English technical engineers provide real-time answers
  • Permanent Supply of Accessories: The D16 series of locking pins, pressure blocks, and support blocks are in stock, and accessories can be shipped separately worldwide without the need to replace the entire platform
  • Replacement for Damaged Items: During transportation, wooden boxes may be bumped, causing scratches on the countertop and loss of accessories. Free replacement of accessories or arrangement for rework and repair will be provided
  • Value Added Services for Major Clients: Batch procurement can arrange remote tooling training for engineers and provide multi variety workpiece tooling construction solutions
Whether you need a single prototype platform or mass equipment layout for automated production lines, our D16 16mm Hole 3D Flexible Welding Fixture Table for Precision Fabrication can meet all your precision manufacturing demands. We provide free technical drawings, factory inspection support and long-term after-sales service. Submit your inquiry today to get exclusive bulk purchase discount and customized fixturing scheme!
