Industrial 28mm Hole Welding Table For Metal Fab

Supply Ability : 500 units/month

Structure Type : 2D Single-sided / 3D Five-sided Full Hole

Model Number : D28

Flatness Tolerance : ±0.1mm / 1000mm

Price : 500-1500 USD

System Standard : D28 System, Φ28mm locating hole

Standard Working Height : 620mm

MOQ : 1 PCS

Delivery Time : 15-25 work days

Hole Tolerance : H7

Payment Terms : D/A,L/C,D/P,T/T

Grid pitch : 100×100mm

Tabletop Material : HT300 Gray Cast Iron/Q355 High Strength Structural Steel

Certification : CE

Place of Origin : WUXI ,CHINA

Packaging Details : 4000*2000*200mm

Brand Name : WUXI LEMAR

Verticality of Side Panel : ≤0.03mm / 100mm

Stress Relief Process : Full high-temperature stress elimination

Contact Now

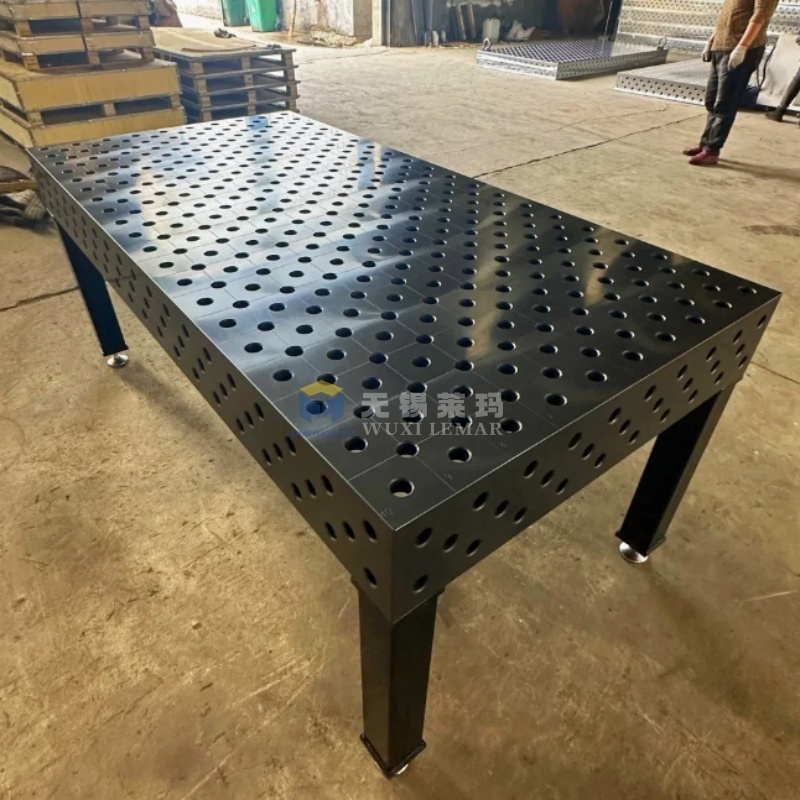

Industrial 28mm Hole Welding Table For Metal Fab

Our Industrial 28mm Hole Welding Table For Metal Fab is a standardized heavy-duty modular fixturing workbench engineered for professional metal fabrication factories, structural workshops and automated robotic welding cells. Built around the international D28 system with Φ28 precision locating holes and 100×100mm uniform grid spacing, this welding work surface delivers repeatable positioning accuracy and full compatibility with all universal System28 clamping accessories, removing the need for costly one-off custom jigs.

Industrial 28mm Hole Welding Table For Metal Fab
Material Selection Guide
Material Advantages Disadvantages Suitable Workshops
Q355 High Strength Steel Light weight, cost-effective, allows temporary tack welding of stop blocks, high impact resistance Slight thermal deformation under continuous high-temperature welding, weaker vibration damping Sheet metal workshops, small structural steel parts, prototyping & repair, budget-conscious customers
HT300 Gray Cast Iron Excellent vibration damping, minimal thermal deformation, permanently stable flatness, low welding vibration Extremely heavy self-weight, higher price, not suitable for direct welding on the tabletop Construction machinery, chassis & frame manufacturing, precision batch welding, robotic welding stations
3D 5-Face Machining System
Industrial 28mm Hole Welding Table For Metal Fab Industrial 28mm Hole Welding Table For Metal Fab

A gantry CNC machining center simultaneously mills the tabletop and all four side walls, while also machining standard φ28mm holes.

  • Hole spacing tolerance is strictly controlled to ±0.05mm, and hole diameters meet the φ28H7 standard
  • Inner walls are smooth and burr-free, ensuring locking pins insert and remove smoothly without sticking
  • The welding table surface undergoes precision grinding: ±0.1mm/1000mm for standard ground models and ±0.25mm/1000mm for nitrided models
  • The tabletop features an etched metric grid and X/Y-axis scales, enabling rapid workpiece alignment without the need for repeated measurements
Comprehensive Service Support

Pre-sales Service

  • Provision of tooling configuration plans and 3D layout drawings based on customer workpiece dimensions and welding processes
  • Free comparative quotations covering materials, surface treatments, and base options
  • Factory visits, tooling sample testing, and shipment of small accessory samples
  • OEM/ODM customization: Engraving customer brand logos on tabletops and manufacturing custom non-standard sizes

After-sales Service

  • 2-year warranty on welding tables; 1-year warranty on tooling clamps and accessories
  • Provision of English installation videos, printed operation manuals, and 3D design drawings
  • 24-hour remote technical support via WhatsApp or email
  • On-site installation, commissioning, and staff operation training available for large-scale overseas projects
  • Lifetime supply of accessories; replacement parts can be purchased individually without needing to replace the entire welding table
FAQ

What's your MOQ?
MOQ is 1 set. Mixed orders of welding tables and accessories are acceptable.


What trade terms can you offer?
FOB, CIF, CFR, DDP sea / China-Europe railway delivery are available.


Can multiple D28 28mm hole welding tables be spliced for long metal fab workpieces?
Yes, dedicated D28 connecting pins lock tables together to keep consistent flatness for long beams and trailer frames.


Is this industrial 28mm hole welding table compatible with international System28 fixtures?

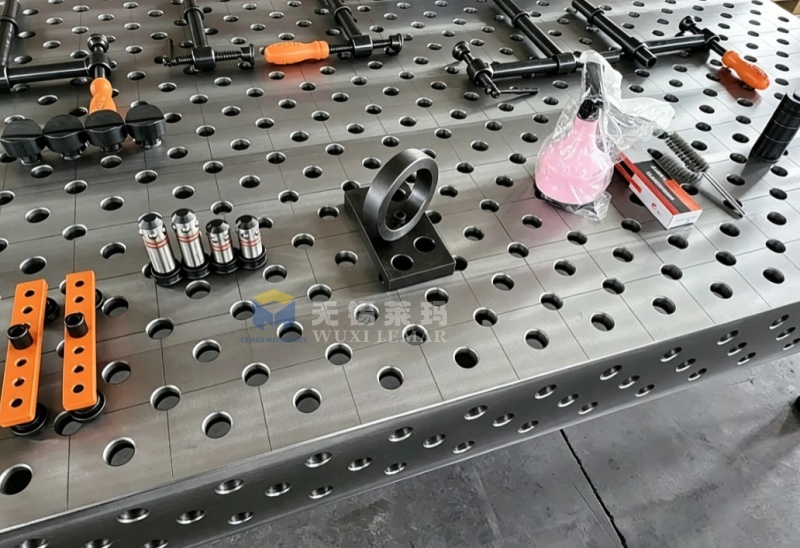

100% compatible with all global standard D28 clamps, V-blocks and quick locking pins.


Do you provide OEM & private label service for 28mm hole welding table?
We support laser engraving your brand logo on the tabletop and customized fixture packages for metal fab production lines.

If you are looking for durable Industrial 28mm Hole Welding Table For Metal Fab for pipe, frame or robotic welding production, send your inquiry right now. Flexible payment terms, DDP global delivery and long-term worldwide after-sales support are all available. Get the factory direct wholesale price by contacting us today!
