High Quality D16 Modular Welding Table with Precision Hole Positioning System

Supply Ability : 500 units/month

Hole Diameter : Φ16 mm, H7 tolerance (Φ16.065‑16.149 mm)

Model Number : D16

Available Material : Q355 Nitrided Steel / HT300 High‑Strength Cast Iron

MOQ : 1 PCS

Delivery Time : 15-25 work days

Machined Surfaces : Five‑sided CNC milled & bored (top + four vertical sides)

Payment Terms : D/A,L/C,D/P,T/T

Hole Grid Pitch : 50 × 50 mm

Perpendicularity (Side to Top Surface) : 0.1 mm / 200 mm

Price : 500-1500 USD

Hole‑to‑Hole Position Tolerance : ±0.05 mm

Flatness : 0.1 mm / 1000 mm

Standard Working Height : 620mm

Certification : CE

Place of Origin : WUXI , CHINA

Packaging Details : 4000*2000*200mm

Brand Name : WUXI LEMAR

Surface Hardness (Steel Version) : HV550-800

Contact Now

High Quality D16 Modular Welding Table with Precision Hole Positioning System
High Quality D16 Modular Welding Table with Precision Hole Positioning System eliminates the hassle of repeated custom jig manufacturing for mixed-variety production. Equipped with complete precision hole positioning system across top and four side faces, it supports multi-direction clamping for frames, sheet-metal assemblies and cabinet parts.
Strict hole-pitch tolerance and fine surface treatment guarantee reliable performance under daily welding spatter and mechanical clamping force. You can quickly rearrange modular tooling when switching to new workpieces. Both steel and cast iron versions are in stock, and full-set solutions with stands and accessories are offered.
High Quality D16 Modular Welding Table with Precision Hole Positioning System High Quality D16 Modular Welding Table with Precision Hole Positioning System
D16 Modular Welding Table Size Chart
Table Size (L × W) mm Approx. Weight (Q355 Nitrided Steel) kg Approx. Weight (HT300 Cast Iron) kg Max Uniform Static Load t
1000 × 800 420 540 3.0
1500 × 1000 680 880 4.0
2000 × 1200 980 1260 4.5
2500 × 1500 1360 1750 5.0
3000 × 1500 1620 2080 5.0
4000 × 2000 2350 3020 5.0
Custom Size -- -- --
Precision Hole Positioning System

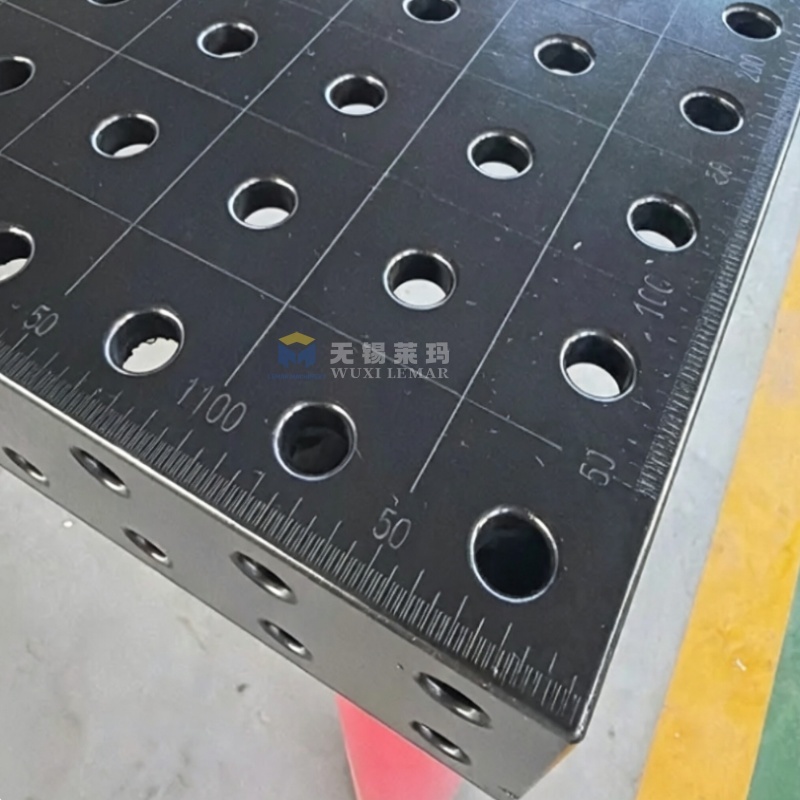

The top surface and four vertical sides of the D16 welding table feature a standard 50×50mm grid of holes:
  • All positioning holes are precision-bored in a single CNC operation, ensuring minimal spacing tolerance between holes
  • D16 positioning pins are inserted into the grid holes, allowing workpieces, squares, stops, and clamps to be mounted directly against these positions
  • Enables 3D, multi-angle positioning, supporting horizontal, vertical, and angled clamping configurations
  • Offers high repeatability in positioning; the same tooling setup can be quickly dismantled and replicated, making it ideal for small-batch, high-variety production and robotic welding stations
Key Features
High Quality D16 Modular Welding Table with Precision Hole Positioning System
  • Modular Flexible Fixturing: Eliminates the need for custom-welded fixtures; switching products simply requires rearranging standard fixture components, significantly reducing setup time and fixture manufacturing costs
  • 5-Sided 3D Clamping: Features positioning holes not only on the top surface but also on all four sides, making it highly convenient to clamp complex box-like structures, frames, and irregular parts for multi-sided welding
  • Thermal Deformation Resistance: The welding table surface undergoes stress-relief aging and nitriding treatments, ensuring resistance to warping or deformation at high welding temperatures and maintaining long-term flatness and positioning accuracy
  • High Compatibility: Adheres to the international D16 standard, ensuring full interchangeability with all D16-series fixture accessories available on the market
  • Optional Leg Configurations: Available options include fixed legs, height-adjustable legs, mobile bases with casters, and hydraulic lifting bases
Common Fault Symptoms and Causes
  • Wobbling or inaccurate positioning after clamping: Hole clogged with metal chips / Worn positioning pins / Loose support legs or uneven floor
  • Localized rusting on the welding table surface: Nitrided layer damaged by grinding or impact; this must be avoided
  • Permanent table warping: Lack of aging treatment / Prolonged excessive heavy loading / Prolonged localized high-temperature welding
Note: Welding causes instantaneous thermal expansion followed by contraction during cooling; if the surface fails to return to its original flatness after cooling, it indicates that the base plate has undergone permanent plastic deformation.
Stop wasting cost on one-off custom jigs. The High Quality D16 Modular Welding Table with Precision Hole Positioning System helps improve your welding efficiency and consistency.
If you have questions regarding specifications, lead time or package options, please do not hesitate to drop us an inquiry.
We will respond within working hours.
