D28 100x100mm Grid Holes Welding Table for Accurate Fixture Setup

Supply Ability : 500 units/month

Hole System : D28 System, Φ28mm locating hole (D10 tolerance)

Model Number : D28

Trade Terms : EXW, FOB, CFR, CIF,DDP

Payment Terms : D/A,L/C,D/P,T/T

Grid Pitch : 100mm × 100mm orthogonal grid

Flatness Standard : 0.1mm/1000mm (Standard), 0.05mm/1000mm (Precision)

Price : 500-1500 USD

Worktop Material : Q355B Steel / HT300 Cast Iron

Surface Treatment : Nitrided

MOQ : 1 PCS

Delivery Time : 15- 25 work days

Machined Faces : 5-sided (Top + Four side faces)

Standard Accessories : Adjustable leveling feet

Brand Name : WUXI LEMAR

Warranty : 12 months

Certification : CE

Place of Origin : WUXI , CHINA

Packaging Details : 4000*2000*200mm

Contact Now

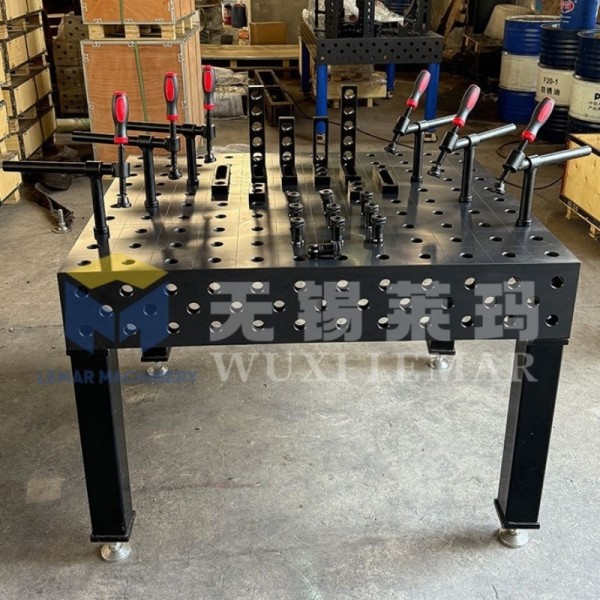

D28 100x100mm Grid Holes Welding Table for Accurate Fixture Setup
D28 100x100mm Grid Holes Welding Table for Accurate Fixture Setup Our D28 100x100mm Grid Holes Welding Table is built on the global standard D28 modular system, engineered for fast and accurate fixture setup in metal fabrication and welding workshops. Equipped with Φ28mm precision locating holes arranged on a 100×100mm orthogonal grid, this 3D welding table supports full 5-sided clamping, enabling flexible assembly of custom jigs without costly one-off tooling. Manufactured with strict stress relief and CNC precision machining, the table maintains reliable flatness and positioning consistency for manual welding and robotic welding stations. Choose Q355 steel or HT300 cast iron structure with optional nitrided surface to resist welding spatter, abrasion and corrosion, ideal for heavy structural parts, vehicle frames and large metal assemblies.
D28 100x100mm Grid Holes Welding Table for Accurate Fixture Setup D28 100x100mm Grid Holes Welding Table for Accurate Fixture Setup
Standard Dimensions - D28 100x100mm Grid Holes Welding Table
No. Size (Length × Width) Worktop Material Standard Working Height
1 1000 mm × 800 mm Q355B steel / HT300 cast iron 750mm (equipped with adjustable leveling feet)
2 1200 mm × 800 mm Q355B steel / HT300 cast iron 750mm (equipped with adjustable leveling feet)
3 1000 mm × 1000 mm Q355B steel / HT300 cast iron 750mm (equipped with adjustable leveling feet)
4 1500 mm × 1000 mm Q355B steel / HT300 cast iron 750mm (equipped with adjustable leveling feet)
5 2000 mm × 1000 mm Q355B steel / HT300 cast iron 750mm (equipped with adjustable leveling feet)
6 2400 mm × 1200 mm Q355B steel / HT300 cast iron 750mm (equipped with adjustable leveling feet)
7 3000 mm × 1500 mm Q355B steel / HT300 cast iron 750mm (equipped with adjustable leveling feet)
8 4000 mm × 2000 mm Q355B steel / HT300 cast iron 750mm (equipped with adjustable leveling feet)
Working Principle and Advantages
Traditional welding: Each workpiece requires a separate cutting and welding of a fixed fixture, resulting in high costs and difficulties in modification.
D28 Grid Welding Table Solution:
  • Insert clamping pins, positioning squares, support blocks, and quick clamps into the platform's circular holes
  • Freely arrange and assemble the fixtures according to the workpiece dimensions
  • After welding, all fixtures are removed and reused
Advantages: Enables multi-variety, small-batch production, significantly reduces tooling manufacturing costs, shortens changeover time, and ensures dimensional consistency.
Precision Standard
D28 100x100mm Grid Holes Welding Table for Accurate Fixture Setup
  • Tabletop flatness: Standard grade 0.1 mm / 1000 mm; Precision customized 0.05 mm / 1000 mm (robot workstation)
  • Side perpendicularity to tabletop: 0.1 mm / 200 mm
  • Repeat positioning accuracy: ≤ ±0.05 mm with standard locking pins
  • Optional etched millimeter scale (X/Y bidirectional scale) on the working surface edge for quick visual positioning
Precautions for Use
  • Avoid prolonged, continuous high-current spot welding directly on the worktable to prevent localized high-temperature deformation
  • Clean weld slag promptly; do not use heavy chisels to violently strike the work surface
  • Apply anti-rust oil when not in use for extended periods, and plug the positioning holes with dust plugs
  • After installation, the welding table must be leveled using a spirit level; otherwise, prolonged stress will distort the reference datum
  • Do not overload or concentrate heavy pressure on a single point; distribute the load as much as possible
FAQrequently Asked Questions
Q: Can I use your D28 fixtures on other brands' welding tables?
A: Yes. Our holes are processed strictly according to D10 tolerance, compatible with mainstream international D28 modular systems welding table.
Q: Is custom size available?
A: Apart from standard sizes (1000×800mm up to 4000×2000mm), non-standard length and width can be customized upon request.
Q: Can you offer CE certification for EU market clearance?
A: Yes. CE documents, material test certificates and dimensional inspection reports can be provided upon request.
Q: Do you support pre-shipment inspection?
A: Welcome third-party inspection or your on-site factory inspection before loading. We can provide dimension flatness test records.
Q: Can you help combine different items into one container to save freight cost?
A: Yes. We can consolidate welding tables, clamping fixtures and other metal products into one shipment for mixed container loading.
Welcome to inquire about D28 100x100mm Grid Holes Welding Table for Accurate Fixture Setup.
Share your working conditions and dimension demands, we will provide cost-effective solutions for your welding production.
