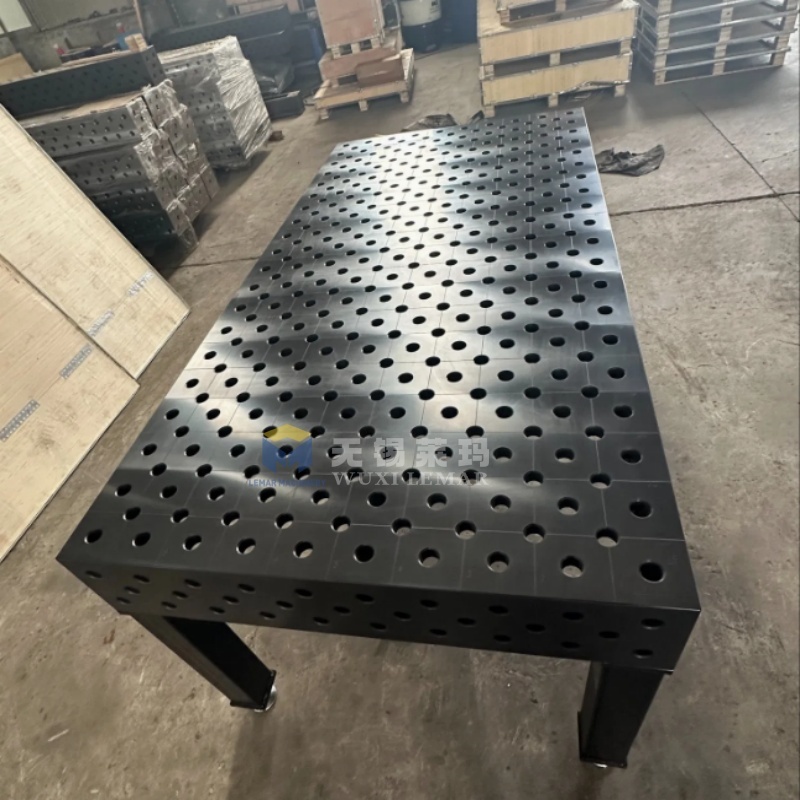

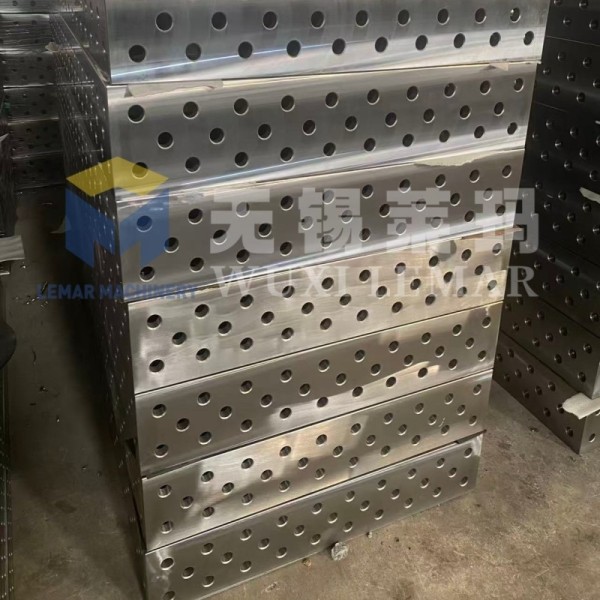

D28 Series Modular Welding Table and Fixture System is a heavy-duty universal 3D welding jig for metal fabricators. The 100 mm grid with Φ28 mm H7 holes supports full interchangeability with global D28 clamping components.
Available in stress-relieved HT300 cast iron or Q355 steel with ion-nitrided surface, in either 3D five-sided or budget-friendly 2D style. Stable flatness and strong loading capacity suit mixed-batch production and robotic welding integration.
All fixtures are fully interchangeable with the D28 welding table hole system and can be freely combined. Key components include:
- Locating pins, M16 quick-locking bolts, quick-release pins
- Right-angle locating blocks, L-shaped angle brackets, angle blocks (0-180° adjustable)
- Hold-down clamps, quick-action clamps, screw-type clamping assemblies
- Extension blocks, height adjustment blocks, V-blocks (for round tube positioning)
- Corner modules, vertical posts, connecting plates (for joining multiple platforms)
Advantages: No need to redesign or manufacture new tooling when switching products; tooling reconfiguration takes minutes to hours; replaces traditional custom welding fixtures, significantly reducing costs.
Fully qualified for European market, the D28 Series Modular Welding Table and Fixture System carries CE certification under EU Machinery Directive 2006/42/EC. All relevant conformity paperwork can be supplied to facilitate your customs clearance and internal compliance checks.
Ready to learn more about the D28 Series Modular Welding Table and Fixture System?
Submit your inquiry with your workpiece specifications and needed fixtures. We will reply with professional offer and supporting documents including CE declaration without delay.
